IEC320 C13 C14 C15 AC Power Inlet & Receptacle Socket
IEC320 C13 C14 C15 AC Power Inlet & Receptacle Socket
IEC320 AC power connectors are widely used as standard power input/output interfaces for electronic and electrical devices. Our IEC320 series covers C14 inlet, C13 receptacle and C15 socket with 10A 250V AC rating.

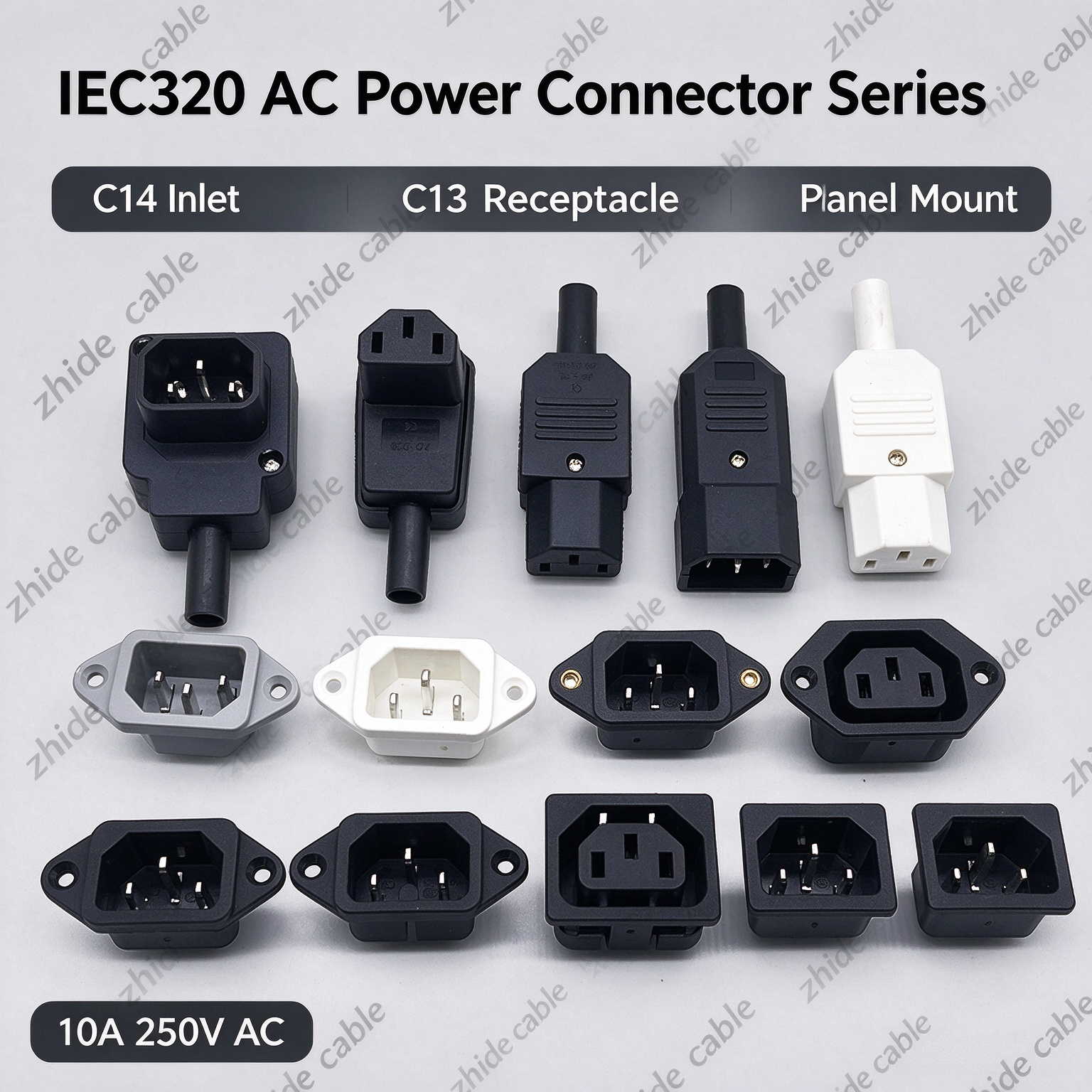

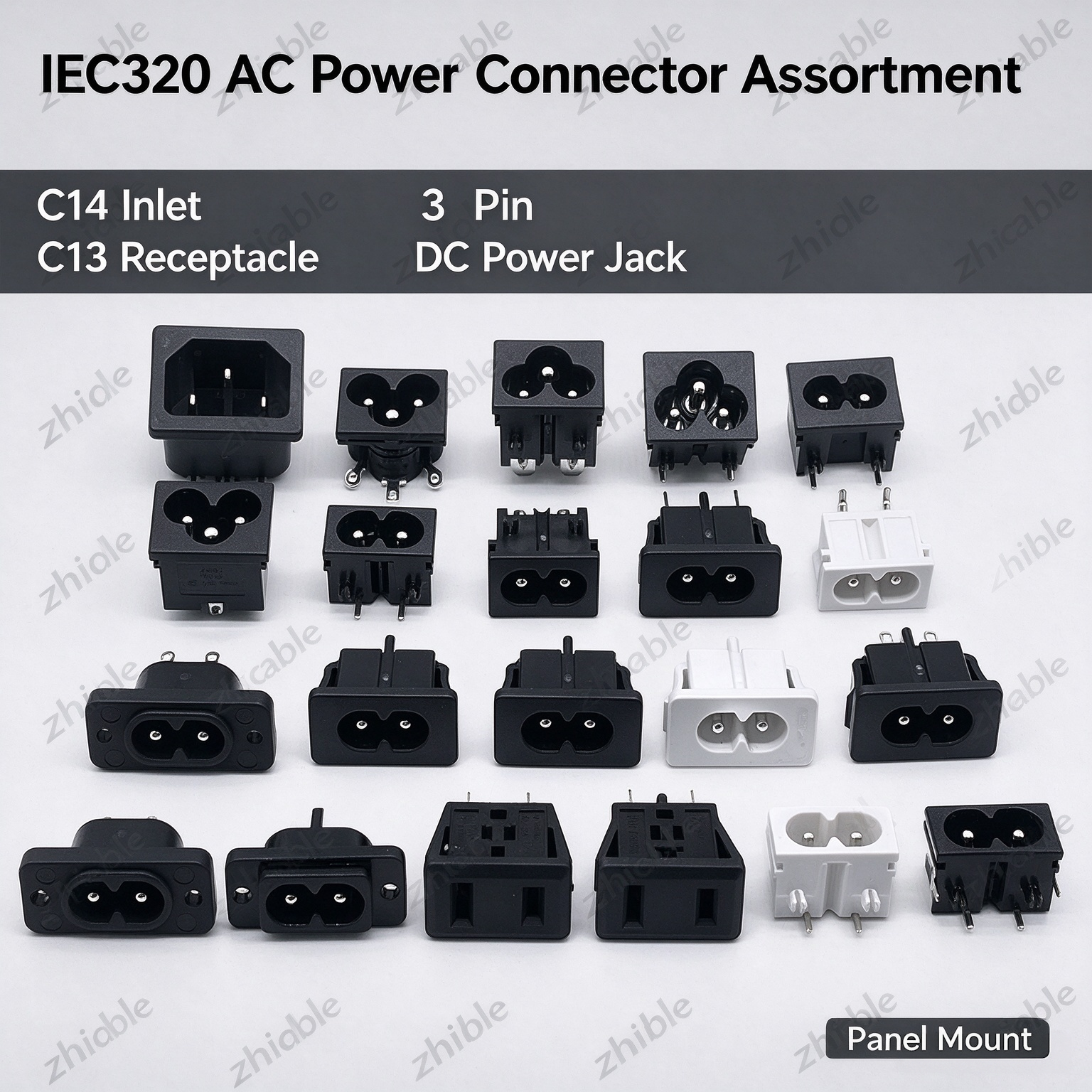

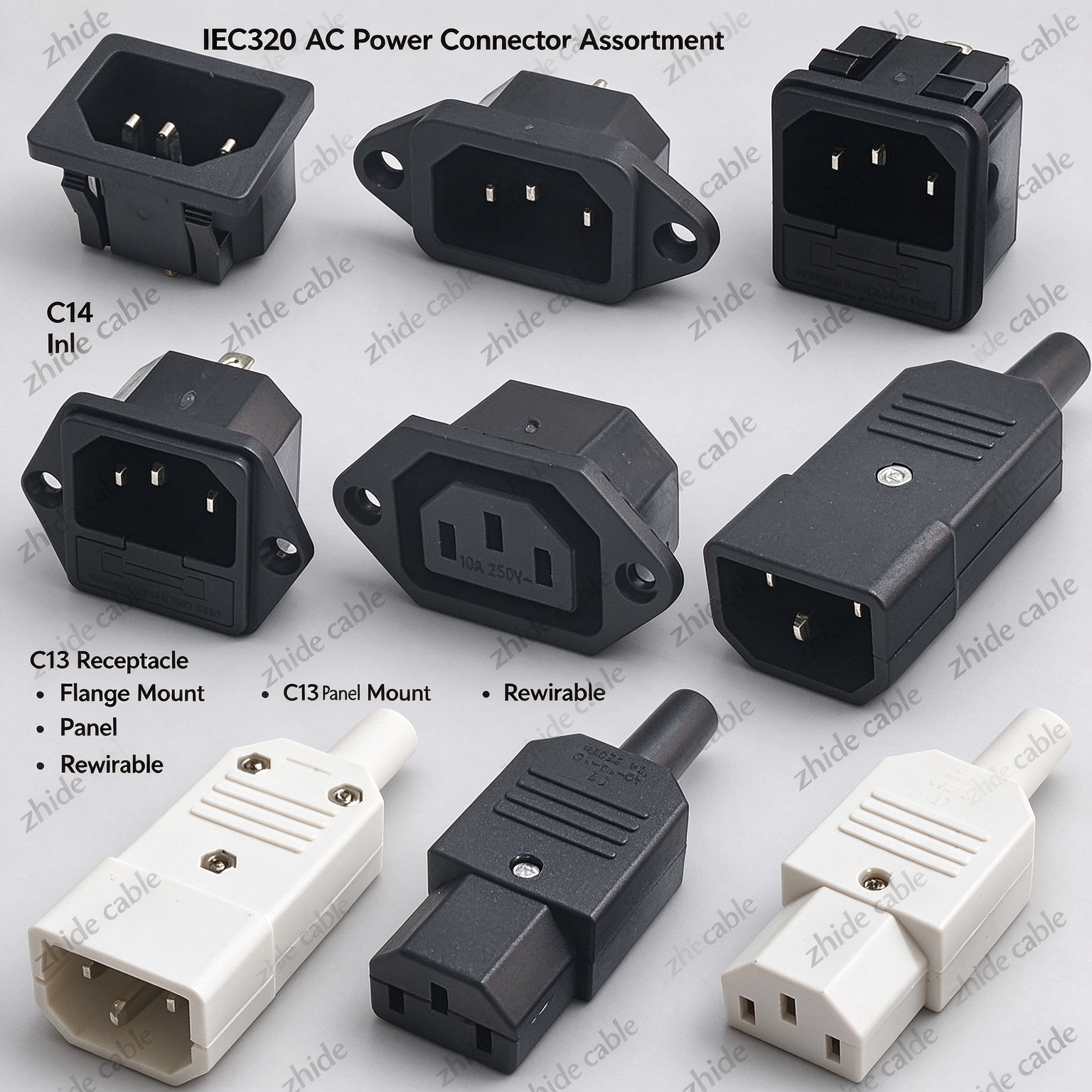

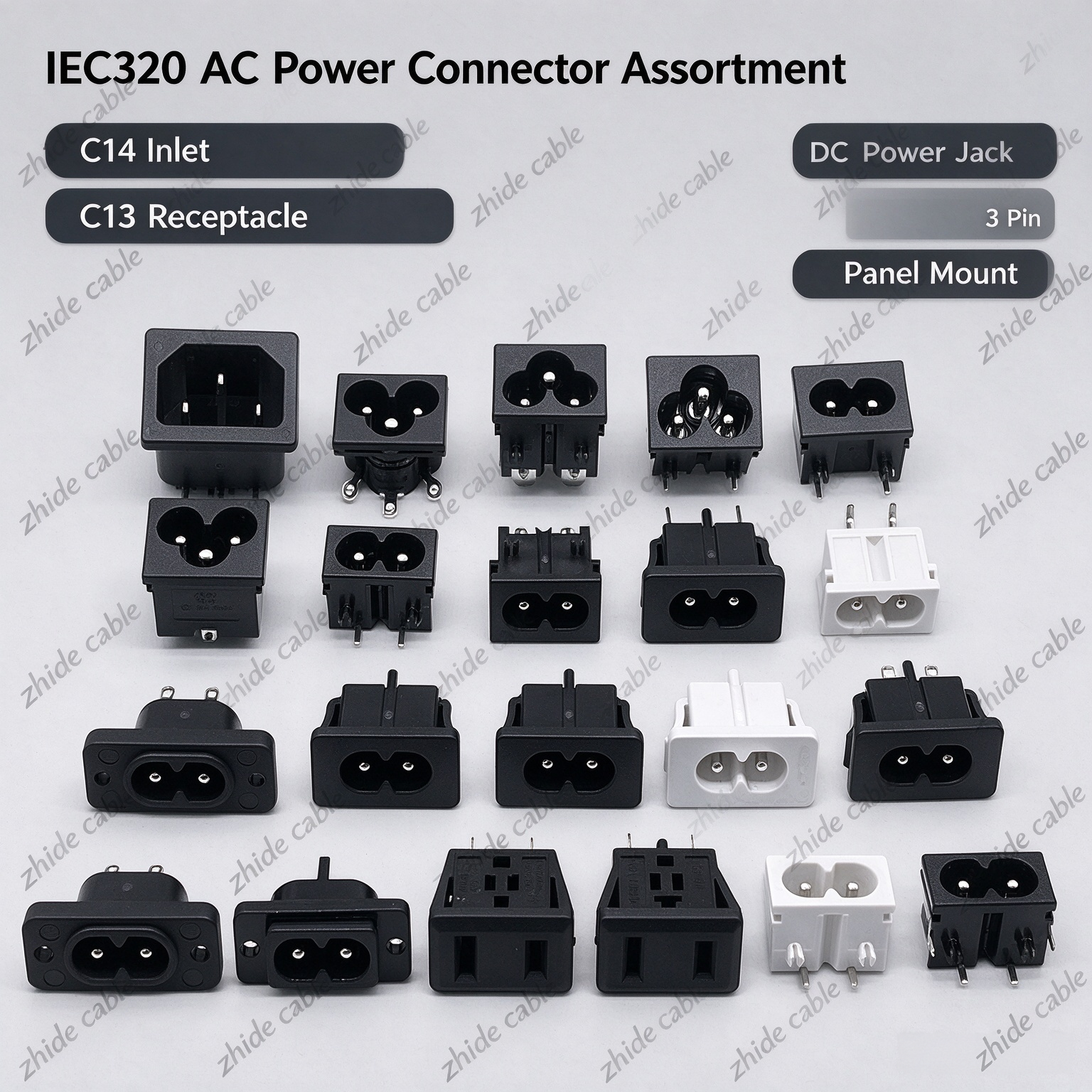

Main Product Types

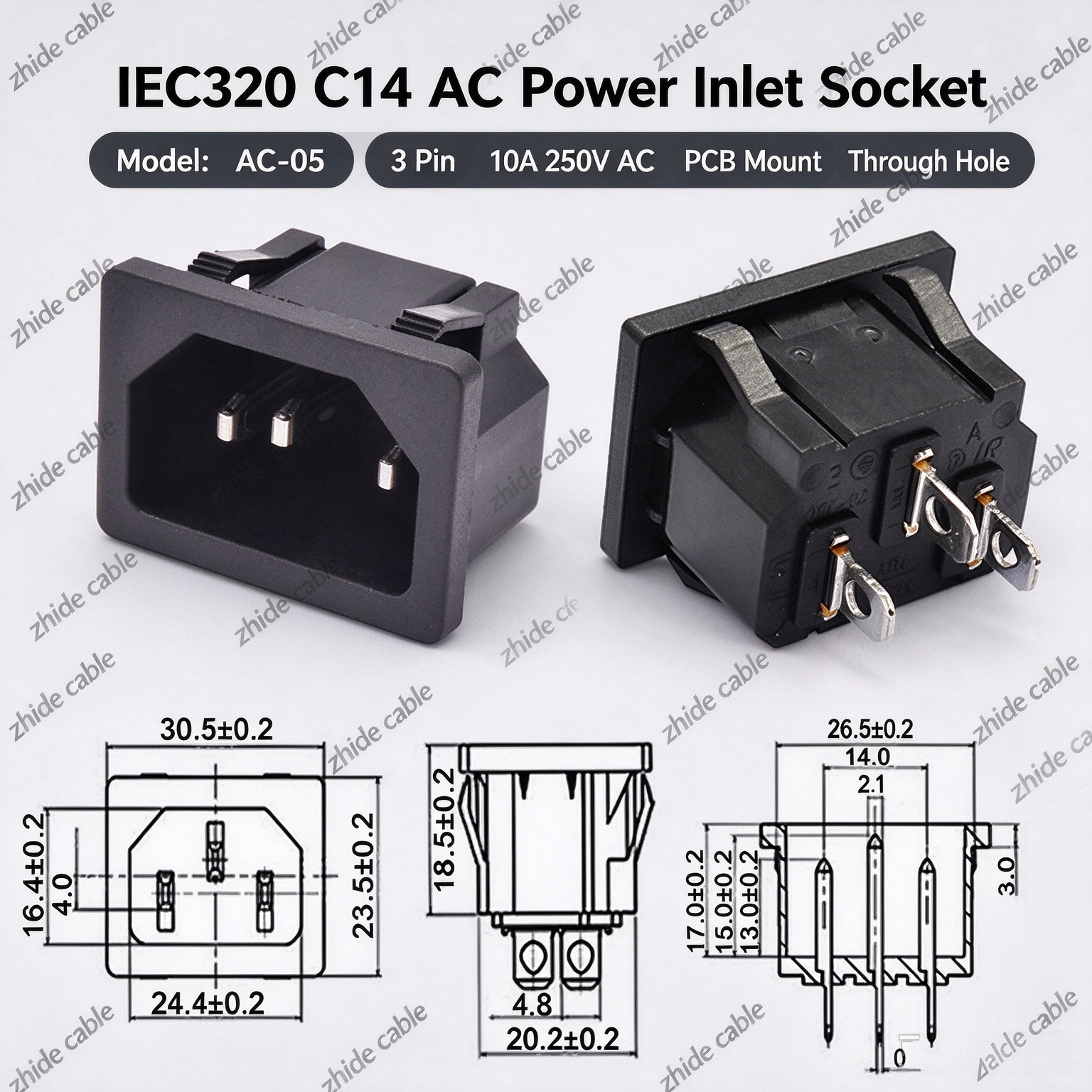

- C14 Inlet (Male Panel Mount Socket)：3-pin power input, flange mount, snap-in mount, PCB through-hole mount, some versions built-in fuse holder.
- C13 Receptacle (Female Panel Mount)：Matching female socket for C14 plug, panel snap-in or flange fixing.

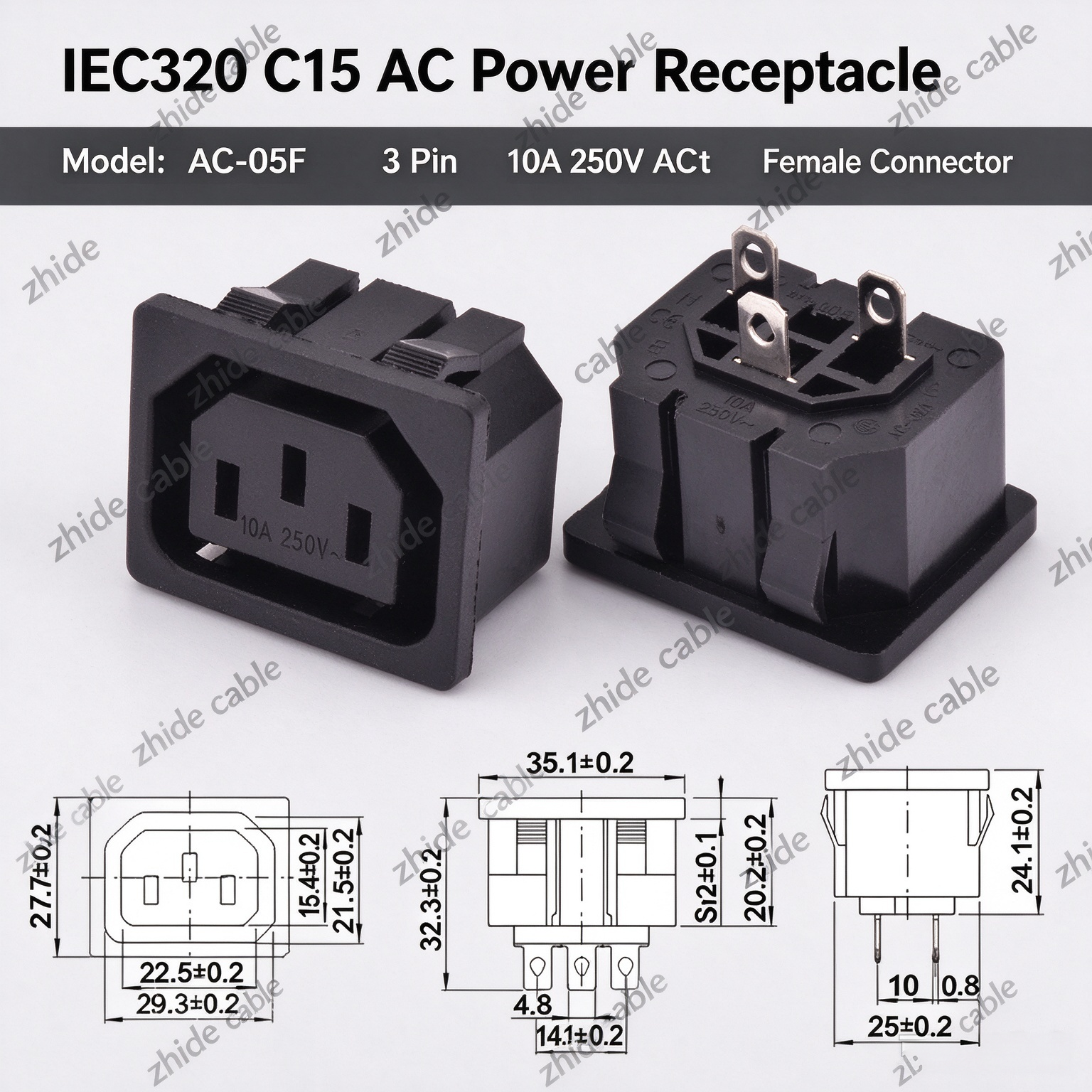

- C15 Receptacle：High-temperature version, compatible with C14 plug, widely used for servers and high-power equipment.
- C13 Rewirable Connector：Field-wireable plug, easy cable assembly without crimping machine.
Key Features
- Rated: 10A, 250V AC, 3 pin design
- Housing: Flame retardant plastic, black / white optional
- Mount options: Flange with mounting ear, snap-in panel mount, PCB through hole
- Optional built-in fuse holder for overcurrent protection
- Stable brass terminals, good conductivity, long plug & pull cycles
- Standard IEC320 specification, fully interchangeable with global standard plugs
Typical Applications
- Desktop power supply, server, UPS
- Medical devices, industrial control equipment
- Home appliances, electric heaters, ovens
- Test instruments, charging cabinets and audio equipment
Custom Service
We can supply bare sockets or pre-assembled power cords with IEC320 connectors. Custom cable length, wire gauge and harness assembly are available. OEM & ODM orders are accepted. Contact us for datasheet and quotation.
