Description

6 sq mm 600 de 1000v dc cable solar wire cable price

_{PV1-F photovoltaic cable is a special cable used for solar photovoltaic modules in the system. It has the characteristics of weather resistance, high temperature resistance, and friction resistance. It has a long service life and high-quality oxygen-free tinned copper conductors. To ensure the superior conductive effect, high-performance insulating materials and sheath materials after radiation cross-linking by a high-energy electron accelerator have reliable insulating and mechanical properties.}

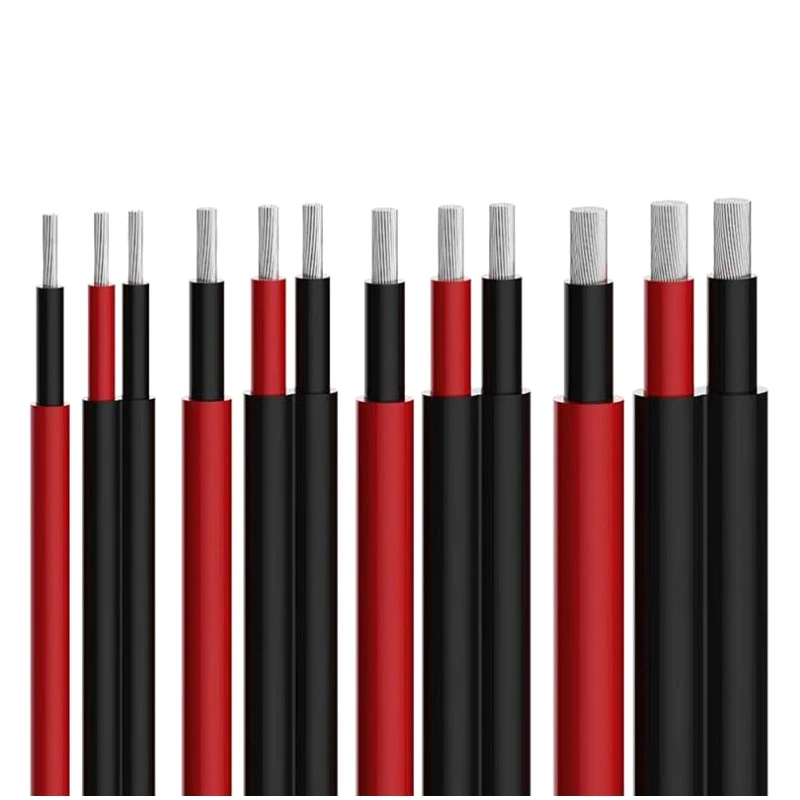

Solar Cable Dc Power Cord 2.5mm 4mm2 6mm2 Tinned Copper Wire Wire DC Power Solar Panel Cable插图

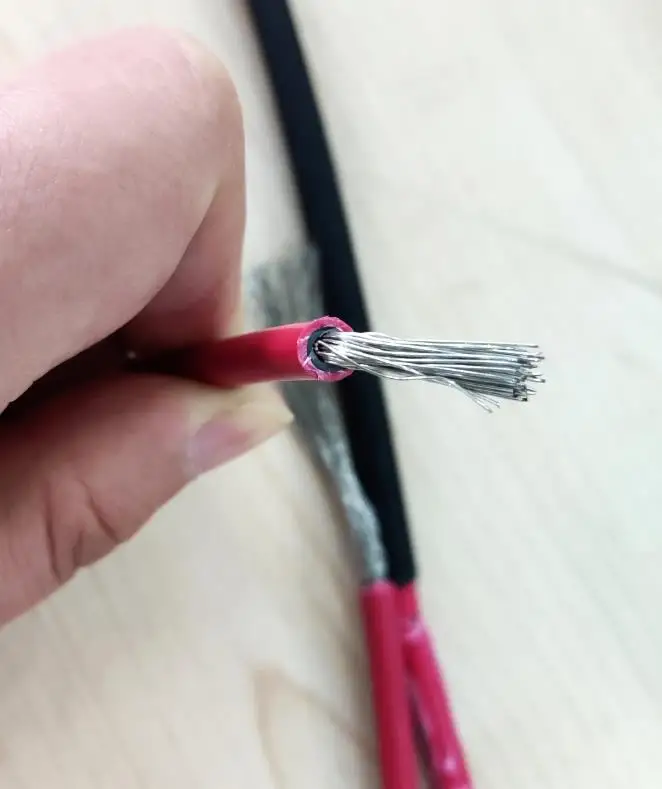

Solar Cable Dc Power Cord 2.5mm 4mm2 6mm2 Tinned Copper Wire Wire DC Power Solar Panel Cable插图1

_Structure

_{Application standard: 2 PfG 1169/08.2007 Conductor: Stranded tinned copper wire conforming to DIN VDE 0295 and IEC 60228 Class 5

Insulation: Irradiation cross-linked low-smoke halogen-free flame-retardant polyolefin}

_{Sheath: Irradiation cross-linked low-smoke halogen-free flame-retardant polyolefin}

_{Insulation nominal thickness: 0.8mm}

_{Nominal thickness of sheath: 0.9mm}

_{Nominal cross section: 4mm2}

_{Outer diameter of finished wire: 6.1±0.1mm Specification: 1×1.5～1×70mm²; 2×1.5～2×35mm² AWG American standard and other specifications can be consulted and customized}

^{Electrical Performance}

^{Rated voltage U0/U: 0.6/1 kV AC; 0.9/1.5 kV DC Maximum allowable AC voltage: 1.8 kV DC (conductor/conductor, no grounding system,

when the circuit is unloaded)}

^{Insulation resistance: 1000 MΩ-km}

^{Conductor resistance (20℃): ≤5.09Ω/km}

^{Sheath surface resistance:

the surface resistance of the finished cable sheath should not be less than 109Ω}

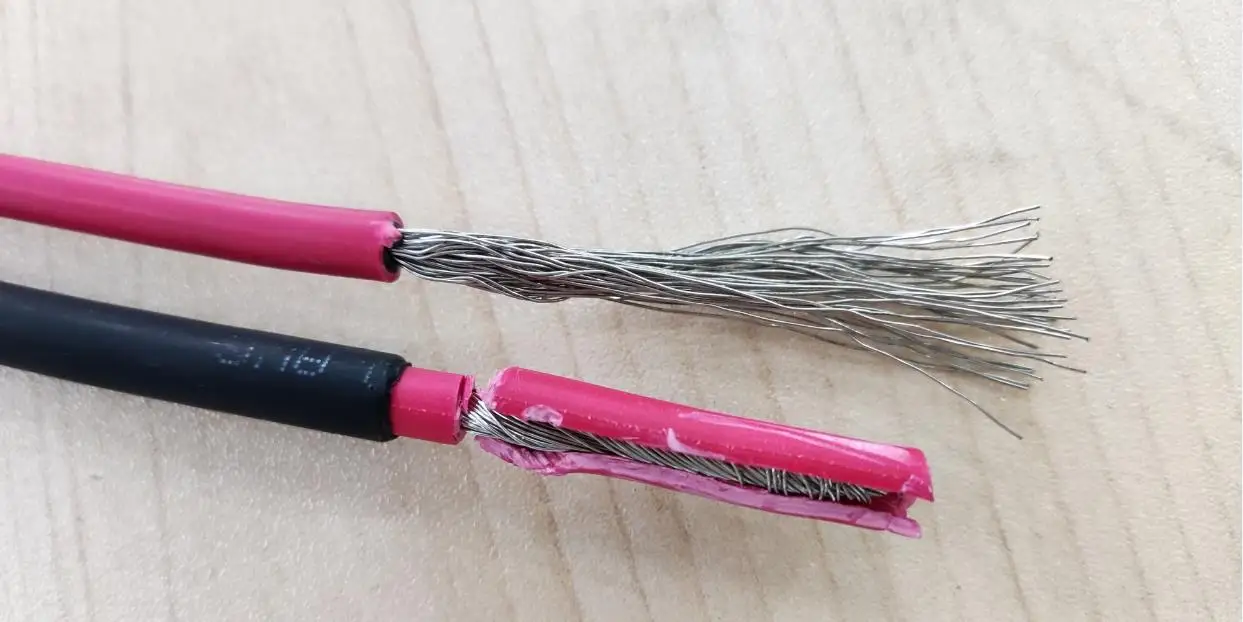

Solar Cable Dc Power Cord 2.5mm 4mm2 6mm2 Tinned Copper Wire Wire DC Power Solar Panel Cable插图2

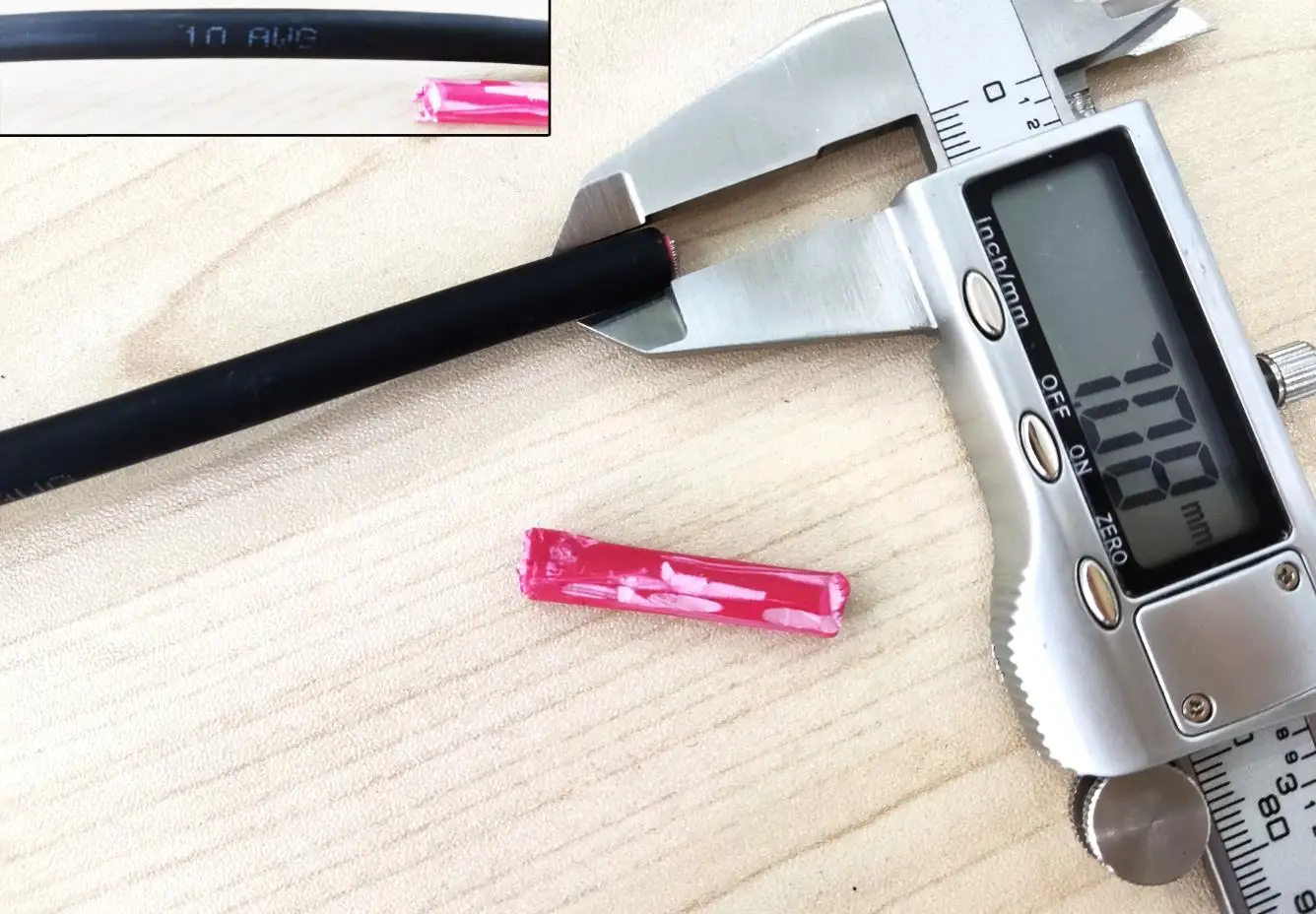

Solar Cable Dc Power Cord 2.5mm 4mm2 6mm2 Tinned Copper Wire Wire DC Power Solar Panel Cable插图3

^{Thermal Performance}

^{Indoor temperature: -40℃ ~ +90℃ Conductor temperature: IEC / EN 60216-1 120 ℃ (20000h) Short circuit temperature: 200℃/5 s Heat resistance test: EN 60216-2 (temperature +120° C) High temperature pressure test: EN 60811-3-1 Heat resistance: EN60068-2-78, 85% humidity}

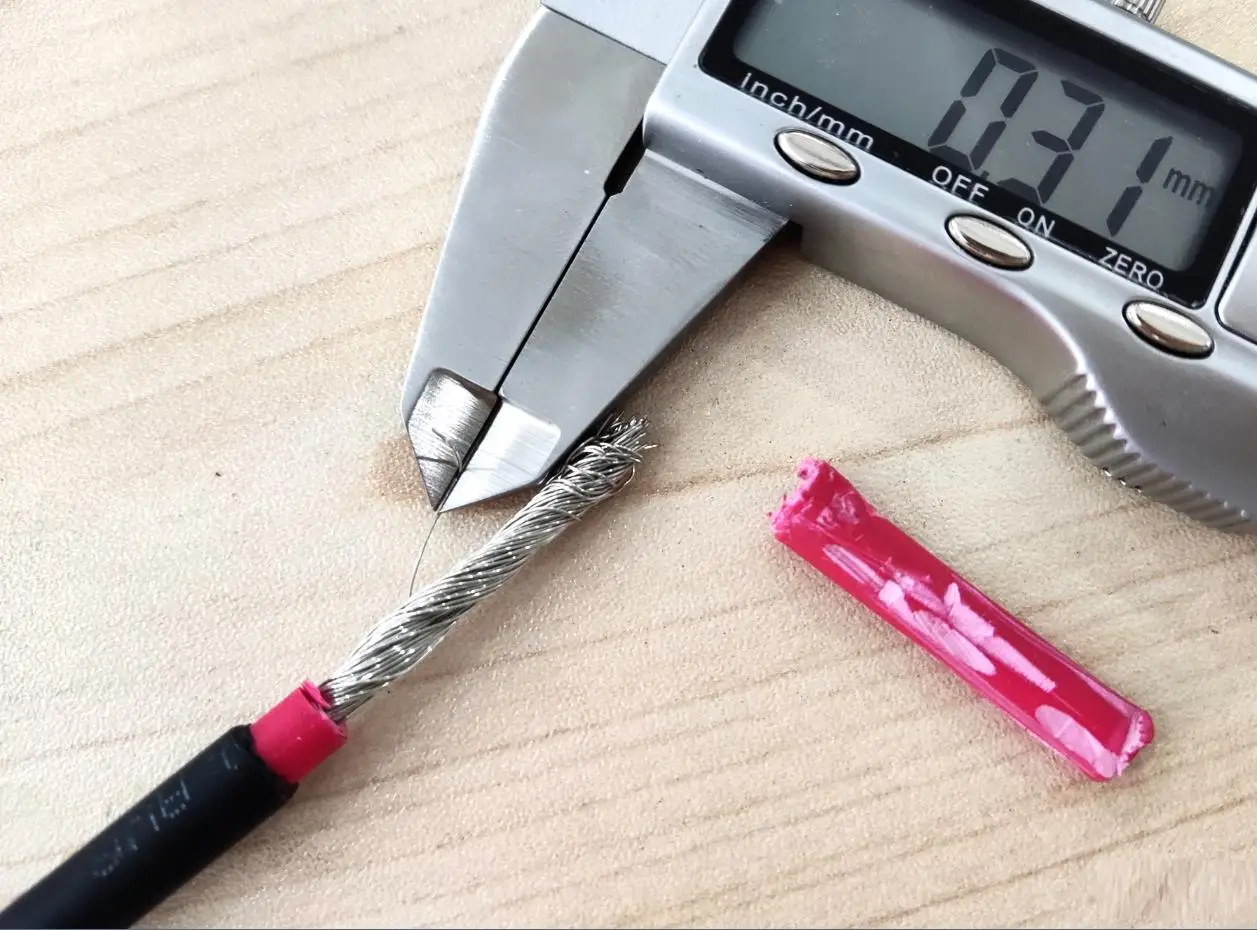

Solar Cable Dc Power Cord 2.5mm 4mm2 6mm2 Tinned Copper Wire Wire DC Power Solar Panel Cable插图4

_{Mechanical Behavior}

_{Minimum bending radius: 4×OD (fixed), 5×OD (flexing) Osmotic: 2 PfG 1169 / 08.2007 appendix F Slot propagation: 2 PfG 1169/08.2007 Appendix G Tensile strength and elongation of insulation and sheath: EN 60811 Life expectancy: 25 years}

_{Twin Core PV1-F Solar Cable}

Cross section mm2	Conductor Construction (n/mm)	Conductor OD (mm)	Cable Outer (mm)	Resistance Max. (Ω/km)	Current Carring Capacity (A)
2 x 1.5mm2 twin core solar cable	30/0.25	1.58	8.3 ± 0.2	13.30	30
2 x 2.5mm2 two core solar pv cable	50/0.25	2.02	9.2 ± 0.2	7.98	41
2 x 4mm2 dual core solar cable	56/0.3	2.60	12.0 ± 0.2	4.75	50
2 x 6mm2 pv cable wire	84/0.3	3.42	13.5 ± 0.2	3.39	70
2 x 10mm2 solar cable wire	142/0.3	4.56	17.6 ± 0.2	1.95	98
2 x 16mm2 solar wire	228/0.3	5.60	19.8 ± 0.2	1.24	132

_{Application PV1-F cable for indoor photovoltaic solar installation of electric equipment line. Main features and advantages: PV1-F cable having superior photovoltaic UV, heat, cold, ultraviolet radiation resistance, ozone resistance, water resistance, acid resistance, salt corrosion, the superior wear resistance and weather capability.}
