TUV/UL H1Z2Z2-K Customized Factory DC Wire 4mm2 6mm2 10mm2 Red Black 100m/Roll Xlpe Tinned Copper Pv Solar Cable
Description
Specification
Tinned Copper Pv1-f Dc Solar Pv Power Cable 4mm 6mm 8mm 10mm Photovoltaic Solar Cable Wire
|
Item
|
SOLAR CABLE
|
|
Production Specification
|
1.5 mm2~95 mm2
|
|
Coductor
|
Tinned Copper/ Aluminum AL, based on client’s requirements
|
|
Insulation material
|

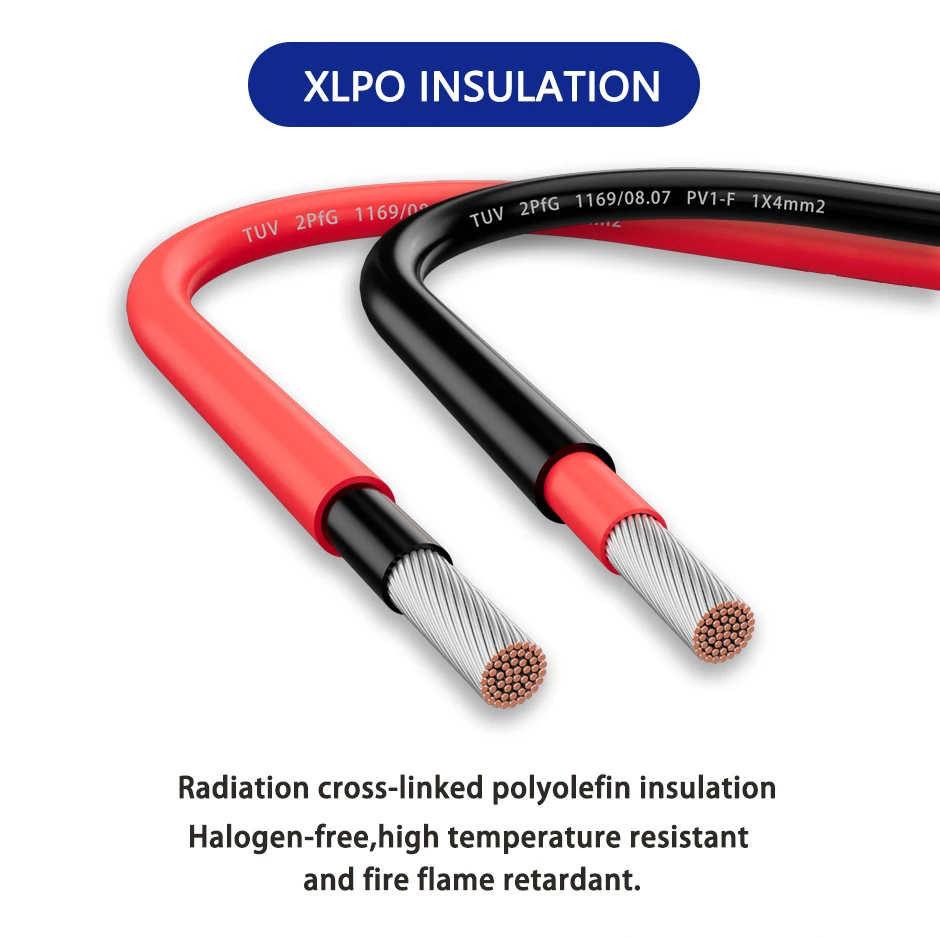

XLPE(XLPO)
|
|
Temperature range
|
-40℃~90℃
|
|
Color
|
Black / Red
|
|
Rated voltage
|
AC0.6/1KV, DC1.0/1.5KV
|
|
OEM/ODM
|
Available
|
|
Certificate
|
TUV/EN/CE/CQC
|
|
Delivery Time
|
7-14 days after confirming the order
|
Product Standards:2PfG 1169/08.07、EN 50618:2014

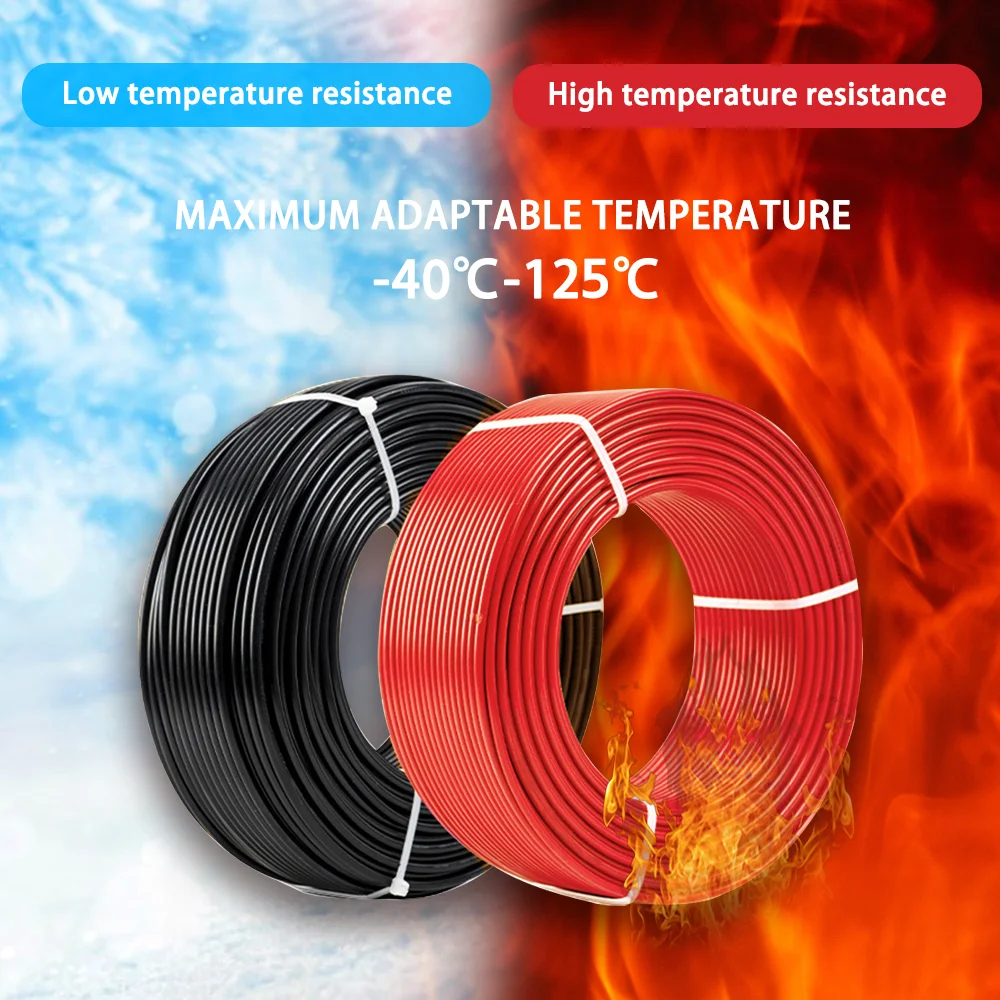

Description: (1) Long-term working temperature of cable conductor -40℃～125℃ (2) The maximum temperature of the cable conductor does not exceed 280℃ during short circuit (the longest duration does not exceed 5s) (3) It has excellent heat resistance, cold resistance, oil resistance, ultraviolet resistance, ozone resistance, low smoke, halogen-free, low toxicity and flame retardant. (4) Thermal shrinkage ≤1%; 20000h thermal life test, elongation at break ≤50%. (5) The bending radius of the cable should not be less than the following requirements: 4D when D＜8mm, 6D when D≥8mm (Note D is the outer diameter of the cable)
Products Description
Details Images
